Galvanized Square Deal Knot Field Fencing For Horses / Field Fence For Grassland
Square Deal Knot Field Fence is commonly called S Knot Field Fence , because it has s-shaped knot. It is a type of non-climb field fence, in which uses a separate piece of wire to attach the line wire to the solid stay wire. Its knot is very smooth for your touch and strong enough to feeding animals.
Field fence is the most ideal wire fence for farm and ranch uses. the fence opening can be square, rectangular or spacing. field fence can have many weaving types, such as fixed knot fence, hinge joint fence, square seal knot fence, diamond mesh fence, woven wire fence and chain link field fence. There are very widely range uses and features.
Including: Agricultural fence (such as horse fencing, livestock panel fence);
Ranch fence (such as sheep fencing, goat fence, deer fence and cattle fence);
Grassland fence (such as border fence).
Name: Grassland fence
Materials: Electro galvanized iron wire, Hot dipped galvanized iron wire and High Tensile Steel Wire
Weaving and characteristics: (automated machinery) from hot-dip galvanized buckle connection is made with reasonable structure, beautiful appearance, tensile strength, corrosion resistance and so on
Uses: grassland fence is mainly apply to agriculture, animal husbandry and family farm .Used for borders in fields and grassland for breeding of deer, cattle and other animals.
Packing: packed by plastic film and wooden pallet .Or according to the customer's requirements.
Specifications:
Mesh Wire diameter:1.8mm~2.5mm
Edge wire diameter: 2.0mm~3.2mm
Opening in cm: (Warp) 15-14-13-11-10-8-6; (Weft) 15-18-20-40-50-60-65
Height: 0.8m,1.0m,1.2m,1.5m, 1.7m, 2.0m,2.3m. We can also make as the request of the customer.
Length: 50m-100m(According to the request of the customer)
(Specifications can be made as customers’ specific requirement.)
| Items | SKF 22/160/15 | SKF 17/192/15 | SKF 22/200/15 | SKF 20/245/15 |
| Knots | S knot | S knot | S knot | S knot |
| Height | 1600mm | 1920mm | 2000mm | 2450mm |
| Light High Tensile | RL | R | RL | R |
| Number of longitudinal wires | 22 | 17 | 22 | 20 |
| Wire diameter | 2.0mm | 2.5mm | 2.0mm | 2.5mm |
| Mesh size | 15cm | 15cm | 15cm | 15cm |
| Standard roll length | 50m, 100m, 150m, 200m | 50m, 100m, 150m, 200m | 50m, 100m, 150m, 200m | 50m, 100m, 150m, 200m |
| Surface treatment | Hot dipped galvanized | Hot dipped galvanized | Hot dipped galvanized | Hot dipped galvanized |
| Tensile strength of longitudinal wires | 1300 N / mm ² | 1400 N / mm ² | 1300 N / mm ² | 1400 N / mm ² |
| Tensile strength of vertical wires | 900 N / mm ² | 900 N / mm ² | 900 N / mm ² | 900 N / mm ² |
| Suitable for | Sheep, goat, cattle, chicken, rabbit | Deer, cattle, pig, sheep, goat | Sheep, goat, cattle, chicken, rabbit | Deer, horse, cattle, sheep, pig |

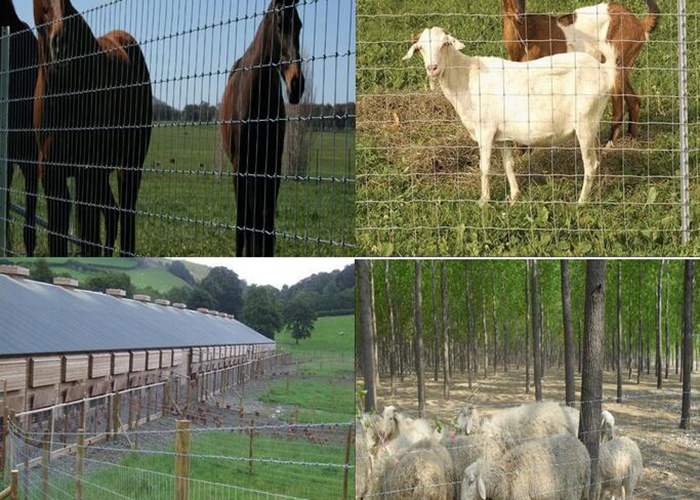

Field Grassland Fence Application:
Field fence has many widely range uses almost covering each corners in our lives. Field fences are mainly used for barriers in ranch construction, grazing and feeding of animals in agriculture farm and grassland fence, Agriculture playgrounds; Forestry;Road, railway and high way safety assurance.
