Brand Name : BROS
Model Number : Bros-0923
Certification : ISO9001:2008
Place of Origin : China
MOQ : 10 rolls
Payment Terms : L/C, T/T
Supply Ability : 300 rolls per week
Delivery Time : Shipped in 20 days after payment
Packaging Details : Packed with plastic paper and then wooden pallet
Product name : Cattle Farming Fence
Wire Diameter : 1.6-3.0mm
Vertical wire distance : 7.5cm, 15cm, 30cm
The top and bottom wire : 2.0-3.7mm
Mesh Height : 2.0m, or as your request
Mesh Length : 50m,100m, 150m
Surface treatment: Electro Galvanized/Hot dipped ga : Electro or Hot dipped galvanized
Type : Weaving Mesh
Cattle Farming Fence / Hot-dipped Filed Wire Mesh Fence For Poultry
Product Description
The most common general livestock fence is a iron/steel wire with high tensile fence. It is used for dairy and beef cattle pasture with low stocking levels.
With the different height, the fences are used for difficult to control livestock such as sheep or horses and a higher stocking levels such as cattle feed yard.
With extra two or three high tensile barbed wires that for added visibility and safety.
Material: low carbon electric galvanized wire, low carbon hot dipped galvanized iron wire,
high carbon hot dipped galvanized wire, high strength galvanized steel wire.
Wire dia: 2mm, BWG 14
Selvage wire dia: 2.5mm
Horizontal wire Dia: 2.0mm
Vertical wire dia: 2.0mm
Fence height: 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m, 2.0m, 2.5m;
Length: 115 inch (50m) or 330 inch (100m);
Distance: (vertical) 15-14-13-11-10-8-6cm; (horizontal) 15-18-20-40-50-60-65cm
Details
Hinge joint fence, Deer fence, Farm fence, Cattle fence | |
Material | High-strength galvanized iron wire; High-strength zinc plated steel |
Mesh | (cm) 15-14-13-11-10-8-6(longitude); (cm)15-18-20-40-50-60-65(woof) |
Height | 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m, 1.6m, 1.8m, 2.0m, 2.4m |
Length | 115feet (50m), 330feet (100m) |
Top and bottom wire diameter | 2.0 – 3.7mm |
In wire diameter | 1.8 – 2.5mm |
Volume diameter | 270mm (50m/roll) |
However, the mesh, height, length, volume diameter can be available |
No. | Type | Specification | Gross Weigh(kg) | Set and bottom wire diameter(mm) | Middle wire diameter(mm) | Volume diameter(mm) |
1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2.0 | 270 |
2 | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 20.8 | 2.5 | 2.0 | 270 |
3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2.0 | 270 |
4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2.0 | 270 |
5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2.0 | 270 |
6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 23.9 | 2.5 | 2.0 | 270 |
7 | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 26 | 2.5 | 2.0 | 270 |
8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 | 2.5 | 2.0 | 270 |
9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2.0 | 270 |
10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2.0 | 270 |
Advantage & Features
1. Preserve the ecological environment and prevent massif from landslide.
2. This quality fencing ensures a solid construction over any terrain.
3. Anti-oxidizing property, Corrosion resistant.
4. Easy maintenance, Short installation period, Less weight, Easy for transport, and Good ventilation.
5. Flat mesh surface, firm and precise structure
Packing
1. Plastic film per roll with label
2. 9rolls per pallet
3. Wrapped plastic film outside pallet
Widely Used
This kind of wire fence is strong for keeping and breeding animals.
1.Livestock fencing and confinement
2.Crop protection.
3.Erosion control silt fence backing
4.Garden fencing.
5.Land fencing and side line dividers.
![]() |

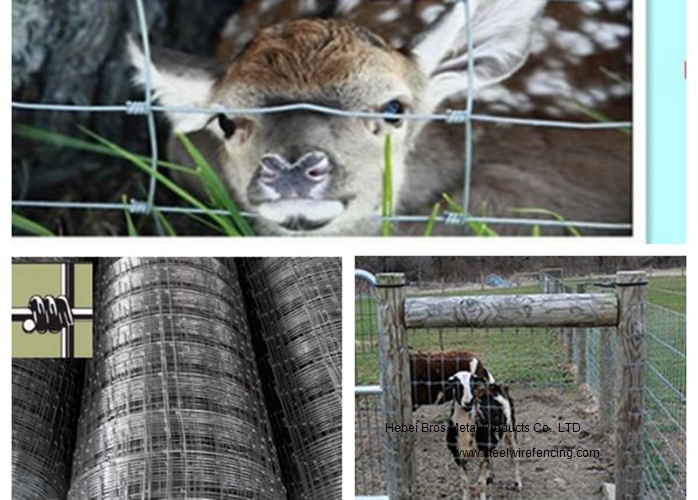

Cattle Farming Fence / Hot-Dipped Filed Wire Mesh Fence For Poultry Images |
