Electric Galvanized Grassland Fencing / Cattle Fence / Field Fence
Description of Grassland Fencing
Grassland cattle fence is one type of field fence best suited for large areas. If you breed deer, cattle, horse, sheep and other animals, grassland cattle fence is the best choice as borders in the fields and grassland. Cattle fence can help keep your livestock in where they belong and protect them from the violation of any outside predators. We can use high strength steel wire or zinc coating wire to weave cattle fence..
1. Material:galvanized wire
2. Knot types of junction:Hinge knot,Fixed knot
3. Wire diameter:mesh wire2-2.5mm,edge wire : 2.-3mm
4. Width of mesh opening: 150mm,300mm
5. Height:0.8m,0.9m,1.0m,1.1m,1.2m,1.5m
6. Length:50m,100m
7. Type:Woven
8. Hole shape:Rectangle
9. Surface treatment: Hot-dipped galvanized or electro galvanized.
10. Characteristics: Corrosion resistance, high tensile strength wire, durable against hit, firm structure, flat surface treatment, good flexibility and long service life, etc.
Products Specification
| | | | Unit | Dia | Dia. | Dia. |
| Type | Specification | Weight | (top&bottom) | (inner) | (roll) |
| | | kgs | mm | mm | mm |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2.0 | 250 |
| 2 | 8/150/813/50 | 89+89+102+114+127+140+152 | 20.8 | 2.5 | 2.0 | 250 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2.0 | 250 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2.0 | 250 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2.0 | 250 |
| 6 | 9/150/991/50 | 89+89+102+114+127+140+152+178 | 23.9 | 2.5 | 2.0 | 250 |
| 7 | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 26 | 2.5 | 2.0 | 250 |
| 8 | 10/150/1194/50 | 89+89+102+114+127+140+152+178+203 | 27.3 | 2.5 | 2.0 | 250 |
| 9 | 10/150/1134/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2.0 | 250 |
| 10 | 11/150/1422/50 | 89+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2.0 | 250 |
Note : The first group means the numbers of horizontal wire
The second group means length of the mesh size
The third group numbers mean the height of the fence, that is the width of the roll;
The fourth group stands for the standard length of the roll.

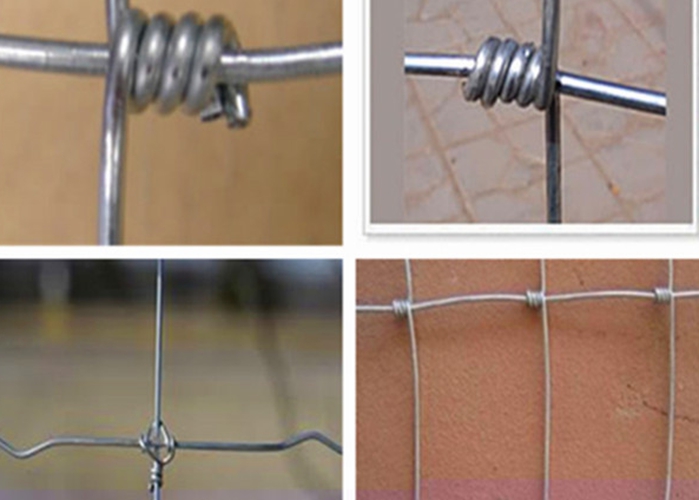

Knots of Cattle Field Fence
Packing
1. By pallet: plastic film-pallet, packed with cardboard upside, easy to load and unload
2. In bulk, wrapped with plastic film, reduce package cost.
Features
1. With innovative and firm structure, flat surface, uniform opening.
2. Good flexibility, good resistance against pressure, hit, corrosion and weather.
3. Neither loose nor break even when partial cutting or hit occur.
4. Tight rolls and large loading, suitable for exporting.
5.Less weight, easy transport, fast installation, easy maintenance.
Uses
The metal animal farm fence panel is mainly used for rasing cattle, goat, deer, pig etc in grassland or pasture.
Product Tags:
|
|
Grassland Cattle Wire Fence Panels Woven Type For Livestock , 0.8m-2m Height Images
|
