Hinge Joint Fencing For Protecting Farmland / Field Fence / Grassland Fence
Product Description
Hinge joint fence is always called farm fencing. Hinged tensile field fence are mainly used for grassland, breeding, forestry, site fencing, isolation of sites or projects. And protecting his jumping animals likedeers, horses and cow, sheep and goat. So , the product shave a wide range of applications (animals fields, farmland, lawns and gardens)
Material: low carbon electric galvanized wire, low carbon hot dipped galvanized iron wire,
high carbon hot dipped galvanized wire, high strength galvanized steel wire.
Zinc coating: normally 60-100g per square meter, max 230-240g per square meter.
Tensile strength: horizontal wire: 80-90kgs mm2, vertical wire: 40-50 kgsmm2.
Type of vertical wire: folded and straight.
Length: 165 inch (50m) or 330 inch (100m).
| Hinge joint fence, Deer fence, Farm fence, Cattle fence |
| Material | High-strength galvanized iron wire; High-strength zinc plated steel |
| Mesh | (cm) 15-14-13-11-10-8-6(longitude); (cm)15-18-20-40-50-60-65(woof) |
| Height | 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m, 1.6m, 1.8m, 2.0m, 2.4m |
| Length | 115feet (50m), 330feet (100m) |
| Top and bottom wire diameter | 2.0 – 3.7mm |
| In wire diameter | 1.8 – 2.5mm |
| Volume diameter | 270mm (50m/roll) |
| However, the mesh, height, length, volume diameter can be available |
No. | Type | Specification | Unit
Weight | Dia(top&bottom) | Dia.
(inner) | Dia.
(roll) |
| kgs | mm | mm | mm |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2.0 | 250 |
| 2 | 8/150/813/50 | 89+89+102+114+127+140+152 | 20.8 | 2.5 | 2.0 | 250 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2.0 | 250 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2.0 | 250 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2.0 | 250 |
| 6 | 9/150/991/50 | 89+89+102+114+127+140+152+178 | 23.9 | 2.5 | 2.0 | 250 |
| 7 | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 26 | 2.5 | 2.0 | 250 |
| 8 | 10/150/1194/50 | 89+89+102+114+127+140+152+178+203 | 27.3 | 2.5 | 2.0 | 250 |
| 9 | 10/150/1134/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2.0 | 250 |
| 10 | 11/150/1422/50 | 89+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 |
Advantage & Features
Farm fence simple in structure
Easy maintenance
Short installation period
Less weight, easy for transport and good ventilation

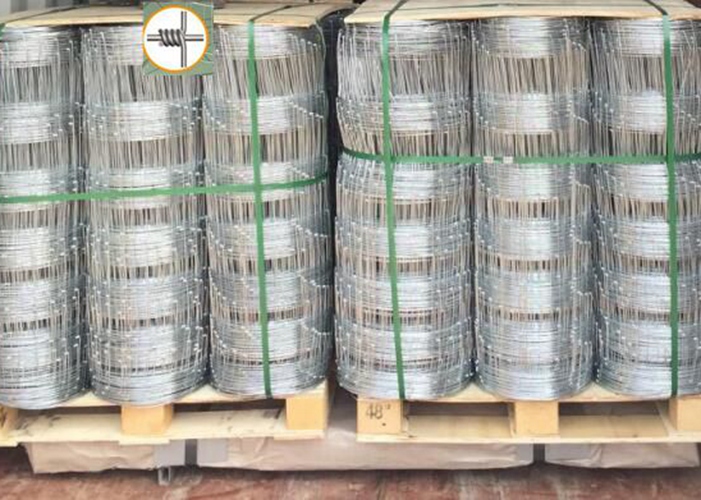

Packing
1. Water proof paper inside and plastic outside, and then loading wooden pallet.
2. According to customers' requirement.

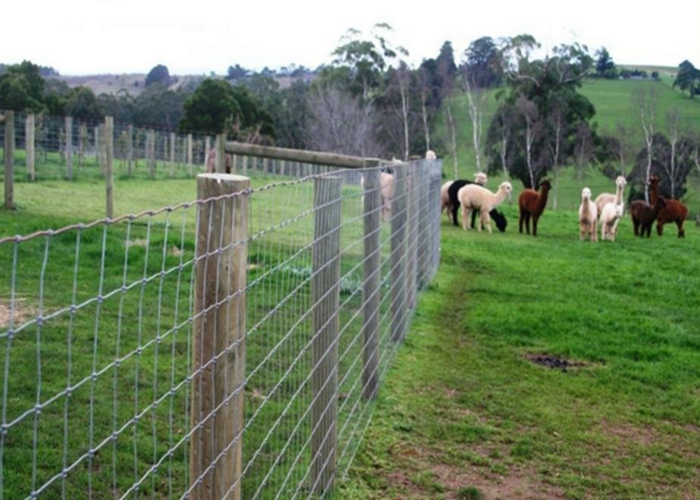

Widely Used
Hinge Joint Fencing is a kind of mesh fence used in cattle, goat, deer, and pig. It is used for grassland, pastures, protection of ecological projects, protecting grassland, forestry, highway, and environments.
