Galvanized Fixed Knot Field Fence For Grass Field / Goat Fence / Cow Fence / Deer Fence
Fixed knot fence with solid lock construction is mainly used as field fencing to protect cattle such as deer, horse, cow, sheep and goats, and also used as grassland fence and farm fencing. It is also called game fencing.
Game fence/ fixed knot game fence/field fence wire

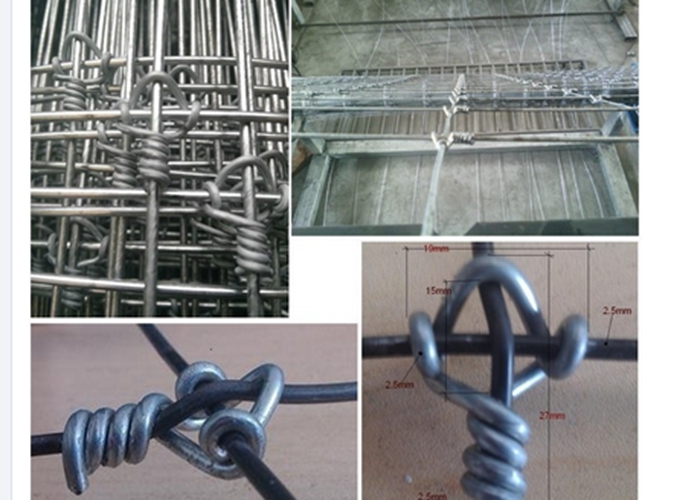

This is a high tensile fence with a fixed-knot, which holds the vertical stay wires securely in place, unlike any other fence made. The Class III galvanized coating can last up to 25 years.
1. Materials: Low carbon galvanized wire,
2. Surface treatment: electro galvanized or hot-dipped galvanized (Zinc coating: 8-15g / 230-350g/m2)
3. Mesh wire diameter:1.8mm~2.5mm,(Horizontal wire: 2.50mm,Vertical wire: 2.50mm)
4. Edge wire diameter: 2.0mm~3.2mm (Node wires: 2.24mm)
5. Opening in cm: (Warp) 15-14-13-11-10-8-6; (Weft) 15-18-20-40-50-60-65
6. Height: 0.8m,1.0m,1.2m,1.5m, 1.7m, 2.0m, 2.3m. We can also make as the request of the customer.
7. Length: 50m-100m- 150m (According to the request of the customer)
8. Characteristics: Corrosion resistance, high tensile strength wire, durable against hit, firm structure, flat surface treatment, good flexibility and long service life, etc.
Specification
| | | | Space between vertical wires | Wire gauge (top and bottom wires) | |
| | | | | | 48 inch high × 200ft. long |
| | | | | | 48 inch high × 200ft. long |
| | | | | | 49 inch high × 200ft. long |
| | | | | | 60 inch high × 200ft. long |
| | | | | | 61 inch high × 200ft. long |
| | | | | | 61 inch high × 200ft. long |
| | | | | | 75 inch high × 330ft.long |
| | | | | | 78 inch high × 330ft.long |
| | | | | | 90 inch high × 330ft. long |
| | | | | | 96 inch high × 165ft. long |
| | | | | | 96 inch high × 165ft. long |
| | | | | | 96 inch high × 165ft. long |
| | | | | | 96 inch high × 165ft. long |
| | | | | | 120 inch high × 165ft. long |
Packing
1) Plastic Film Wrapped:It can keep the product from the rain and moisture immersion
2) Pallet loading: All the fence export are equipped with pallets, loading and unloading by the forklift, avioding the scratch and deformation by the manual handling in bulk.
The Feature of Fixed Knot fence
Novelty structure, firmly and exactitude, flat mesh surface, equality mesh, good toughness, never hold together, skid proof, strut, anti-rust,hurricane lamp.
Wide range of applications: For wild cattle fences, horses fencing, big game hunting grounds
Long life and Easy installation.
Ideal for all terrains, as well as corrals and pastures, able to withstand the demands of corralling large animal herds,
Galvanized wire resists weathering as well as wear and tear.
Kinder to animals and less damage to the animal’s hide.

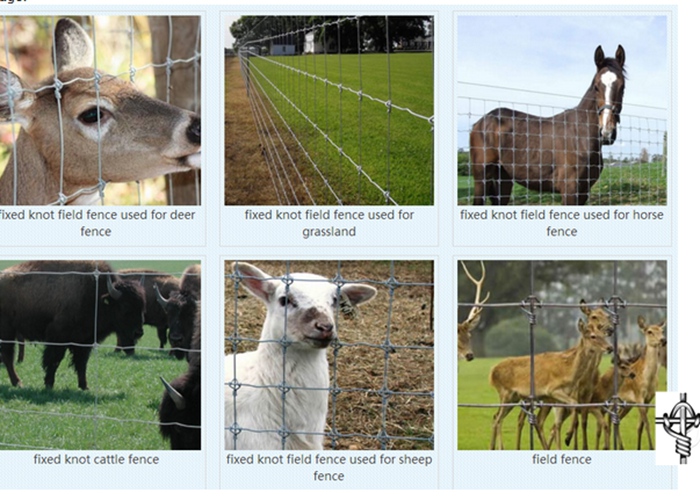

Application
Fixed knot game fence is a kind of mesh used in cattle, goat, deer and pig. It is used for grassland, pastures, protection of ecological projects, protecting grassland, forestry, farming sectors, highway mitigation fencing and environment.
.
