Hot Dipped Galvanized Farm Grassland Fence For Cattle Ranch In Australia
Farm Fence also called cattle fence,Grassland fence, sheep fence, deer fence, field fence, grassland fence,goats fence, hog wire, horse fence,ranch fence, livestock fence, animal fence, etc.
The fences are firm forever once installed and make the best materials for protecting grassland,forestry, highway and environments.
Product Details
Material: Electric Galvanized Wire, Hot-dipped Galvanized Wire, Low carbon steel wire.
Wire diameter: 1.8-2.5mm(, inner wire ), 1.8-3.5mm( outer wire)
Vertical wire: folded and straight
Height: 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m,1.8m,2m,2.4m;
Length: 165 inch (50m) or 330 inch (100m)
Knot types :Hinge knot,Fixed knot
Hole shape:Rectangle
Detail Specifications
| | | | Unit | Dia | Dia. | Dia. |
| Type | Specification | Weight | (top&bottom) | (inner) | (roll) |
| | | kgs | mm | mm | mm |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2.0 | 250 |
| 2 | 8/150/813/50 | 89+89+102+114+127+140+152 | 20.8 | 2.5 | 2.0 | 250 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2.0 | 250 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2.0 | 250 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2.0 | 250 |
| 6 | 9/150/991/50 | 89+89+102+114+127+140+152+178 | 23.9 | 2.5 | 2.0 | 250 |
| 7 | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 26 | 2.5 | 2.0 | 250 |
| 8 | 10/150/1194/50 | 89+89+102+114+127+140+152+178+203 | 27.3 | 2.5 | 2.0 | 250 |
| 9 | 10/150/1134/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2.0 | 250 |
| 10 | 11/150/1422/50 | 89+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2.0 | 250 |
Note : The first group means the numbers of horizontal wire
The second group means length of the mesh size
The third group numbers mean the height of the fence, that is the width of the roll;
The fourth group stands for the standard length of the roll.
Other size and shape could be made as requested .
Feature
1.With innovative and firm structure, flat surface, uniform opening.
2.Good flexibility, good resistance against pressure, hit, corrosion and weather.
3.Neither loose nor break even when partial cutting or hit occur.
4.Tight rolls and large loading, suitable for exporting.
5.Less weight, easy transport, fast installation, easy maintenance.

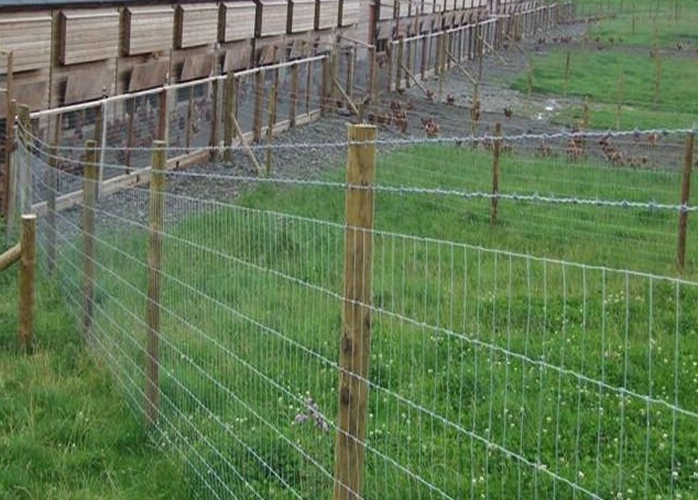

Application
Widely used as the protective partition for grasslands, rangelands,forests, poultry houses,
farms, stadiums, greenbelts, riverbanks, roads and bridges, and reservoirs.
In addition, the deer mesh is mainly used for spotted deer farms.
Product Tags:
|
|
Australia Grassland Farm Mesh Fencing For Cattle Ranch , Rectangle Hole Shape Images
|
